Product Overview

• Part No: N897164610L
• Brand: ALSTOM

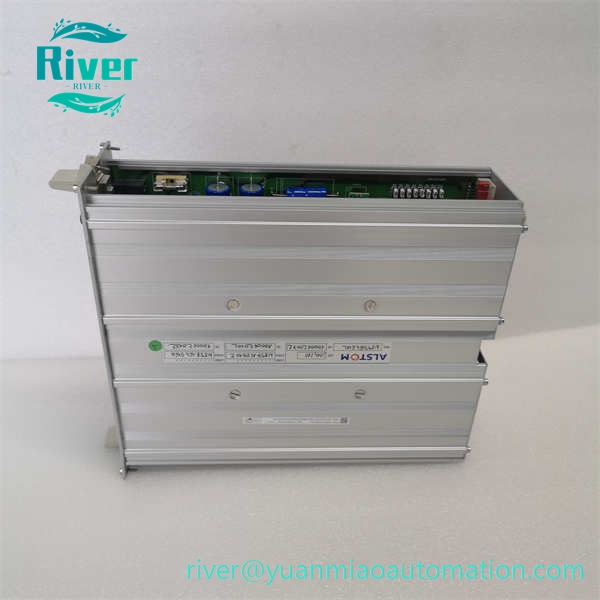

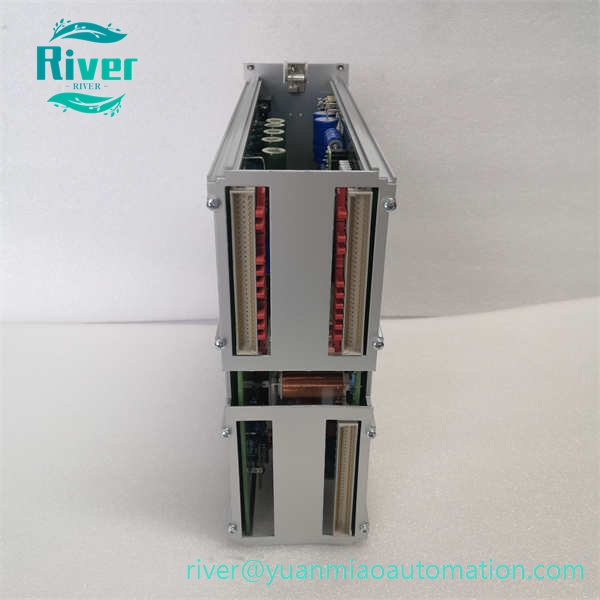

• Category: Pulse Output Control ModuleN897164610L is a plug-in pulse output module developed by ALSTOM for distributed control systems. It generates high-precision programmable pulse signals to drive actuators, positioning equipment and field control devices. The module supports real-time signal conversion, pulse frequency and quantity configuration, and communicates with main controllers via standard industrial bus interfaces. Equipped with built-in signal filtering and surge protection circuits, it delivers stable operation under strong electromagnetic interference. It serves as a critical spare hardware for power plant automation and heavy industrial process control cubicles.

•


Core Features

• High precision programmable pulse signal generation for motion and process control
• Galvanically isolated signal channels to suppress external interference
• Diagnostic LED indicators for quick on-site fault identification
• Standard rack plug-in structure supporting convenient replacement
• Compatible with mainstream industrial communication protocols
• Rugged aluminum housing with enhanced thermal dissipation

• Passed EMC, vibration and thermal cycling reliability qualification

•


Technical Specifications

• Operating Supply: 220V AC
• Max Output Pulse Frequency: 30kHz
• Operating Temperature: -10°C ~ +60°C
• Storage Temperature: -40°C ~ +85°C
• Form Factor: Rack plug-in module

• Protection Class: IP20 when cabinet-mounted

•


Compatibility & Application

• Compatible with legacy ALSTOM DCS and industrial automation platforms
• Widely deployed in thermal power plants, metallurgical plants and heavy industry facilities
• Used for actuator control, positioning system drive and sequential process signal output
