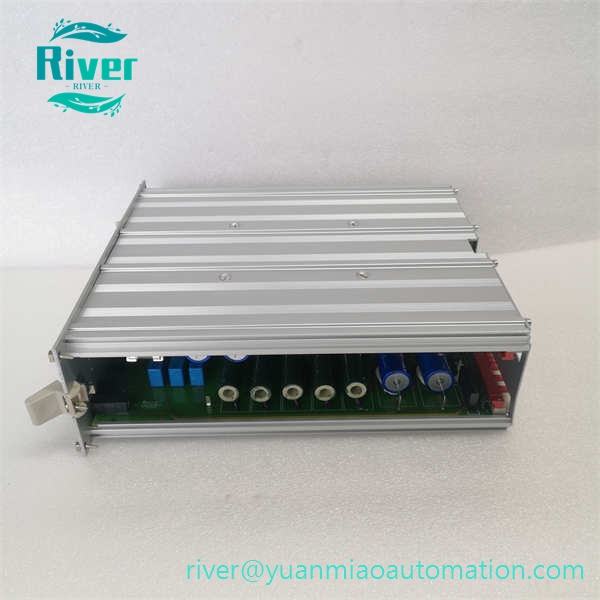

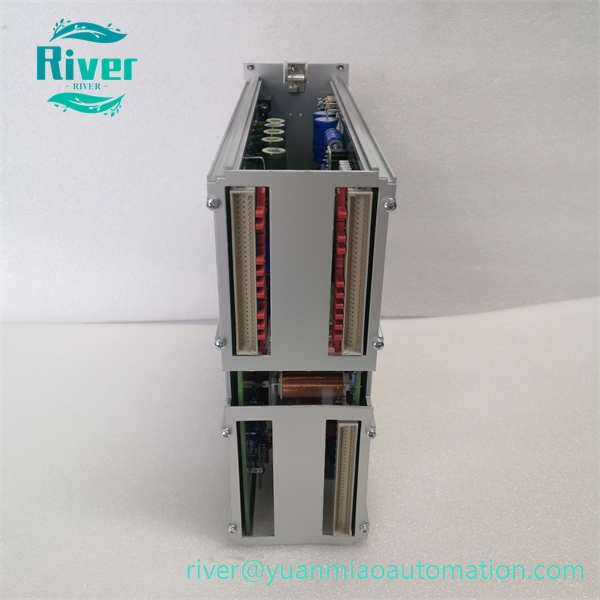

Product Overview

• Part No: N897164611M
• Brand: ALSTOM

• Category: Pulse Output Control ModuleN897164611M is an upgraded plug-in pulse output module of ALSTOM industrial control series, derivative model of N897164610L. It generates configurable high-precision pulse signals to govern actuators, valve positioning units and field process equipment. The module supports flexible programming of pulse frequency and pulse quantity, communicates with main controllers via internal system bus, and executes real-time signal conversion and logic output. Equipped with built-in surge filtering and ESD protection circuits, it maintains stable operation under heavy electromagnetic interference. It serves as essential spare component for thermal power plant DCS, turbine control cabinets and heavy industrial automation panels.

•


Core Features

• Programmable high precision pulse signal generation for actuator and positioning loop regulation
• Galvanically isolated signal channels to suppress external electrical interference
• Front-panel diagnostic LED indicators for rapid on-site fault troubleshooting
• Standard rack plug-in structure supporting convenient direct replacement
• Compatible with ALSTOM legacy distributed control system architecture
• Reinforced aluminum housing for improved thermal dissipation and mechanical stability

• Passed EMC, vibration and wide-range thermal cycling reliability qualification

•


Technical Specifications

• Operating Supply: 220V AC
• Max Output Pulse Frequency: 30kHz
• Operating Temperature: -10°C ~ +60°C
• Storage Temperature: -40°C ~ +85°C
• Form Factor: Standard rack plug-in circuit module

• Protection Class: IP20 when installed inside control cabinet

•


Compatibility & Application

• Compatible with ALSTOM legacy DCS and turbine control platforms
• Widely deployed in thermal power plants, hydropower stations and heavy industrial facilities
• Applied for valve actuator drive, positioning system control and sequential process pulse signal output
