Product Overview

• Part No: SDK-C0147, 12004-101-00, SBS04M17C
• Brand: ALSTOM (subsequently GE Grid Solutions)

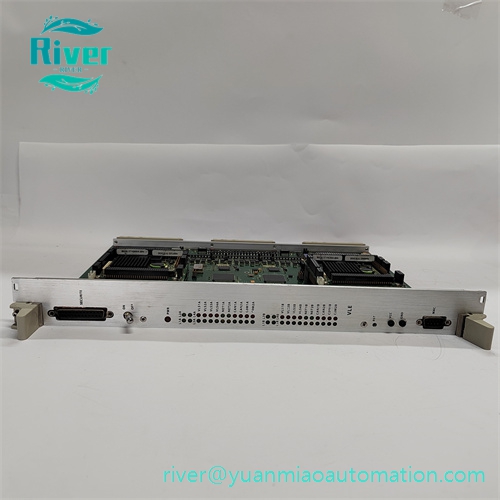

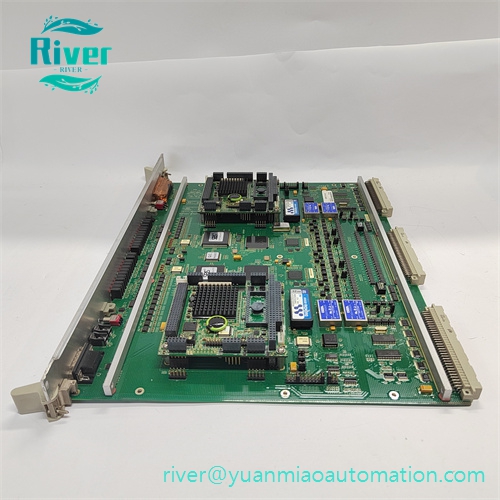

• Category: SBS Serial Bus Station Control ModuleSDK-C0147 12004-101-00 SBS04M17C is a standard Eurocard draw-out serial bus controller developed for ALSTOM legacy turbine control platforms. It acts as a station master unit for SBS serial bus architecture, managing data communication between main controllers and distributed I/O sub-modules. The module processes real-time field signals, executes data forwarding, signal conditioning and communication protocol conversion. Equipped with multi-channel serial interfaces and on-board self-diagnosis circuits, it maintains stable data transmission under heavy electromagnetic interference in power plant control cubicles. It is a discontinued original spare part widely used for maintenance and retrofit of thermal power turbine governing systems.

•


Core Features

• Master communication management for ALSTOM SBS serial bus network
• High-speed bidirectional data exchange between main CPU and remote I/O modules
• Integrated signal filtering and transient surge suppression circuitry
• Front panel LED diagnostic indicators for module status and bus fault detection
• Standard Eurocard rack plug-in design supporting convenient field replacement
• Reinforced multilayer PCB with gold-plated connectors for long-term vibration resistance

• Passed EMC, thermal cycling and vibration reliability qualification tests

•


Technical Specifications

• Operating Supply: 24 VDC
• Operating Temperature: -10°C ~ +60°C
• Storage Temperature: -40°C ~ +85°C
• Form Factor: Standard Eurocard rack plug-in printed circuit board

• Protection Class: IP20 when installed inside control cabinet

•


Compatibility & Application

• Compatible with ALSTOM legacy steam turbine control and distributed control systems
• Widely deployed in thermal power plants, combined-cycle power stations and captive power facilities
• Applied for serial bus communication management of turbine monitoring, governing and auxiliary process control loops
