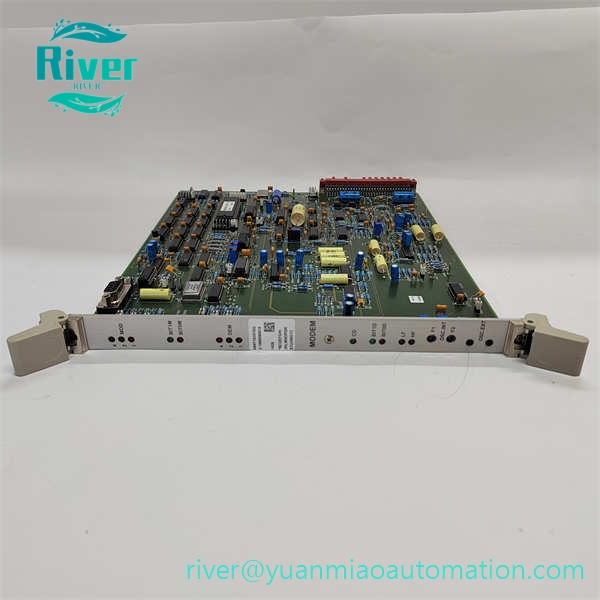

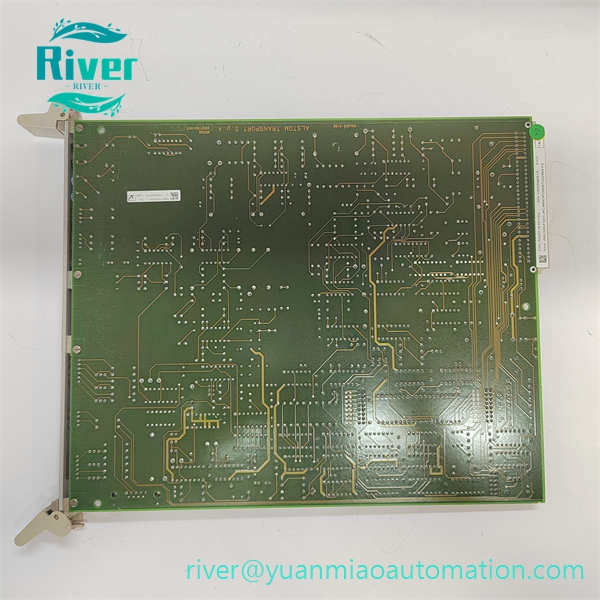

Product Overview

• Part No: N897163510Q, N897163050Q MODEM, N897163100U
• Brand: ALSTOM

• Category: MODEM Communication Modulation & Demodulation ModuleN897163510Q, N897163050Q MODEM and N897163100U belong to ALSTOM legacy N897163 series industrial modem communication Eurocard module family. Different suffix codes represent iterative hardware revisions, which are interchangeable within matching turbine control rack configurations. This module completes digital-analogue signal conversion, realizes long-distance serial data transmission between turbine control rack and remote monitoring station. It receives process parameters, alarm information and operating commands from main controller via backplane bus, performs signal modulation/demodulation, and establishes stable remote communication links. Equipped with built-in signal filtering, surge suppression and isolation circuits, it maintains reliable communication under strong electromagnetic interference in power plant environments. It is an obsolete original maintenance spare widely used for overhaul of thermal power and combined-cycle power plant turbine governing control systems.

•


Core Features

• Industrial-grade modulation and demodulation for long-distance serial communication
• Bidirectional transparent data transmission between control rack and remote monitoring equipment
• Compatible with standard serial communication interfaces for industrial remote transmission
• Front panel LED indicators for module operating status and communication fault diagnosis
• Standard Eurocard draw-out structure supporting fast on-site replacement
• Reinforced multilayer PCB with gold-plated edge connectors for anti-vibration performance
• Integrated ESD and transient overvoltage protection circuits

• Passed EMC, vibration and wide-range thermal cycling reliability verification

•


Technical Specifications

• Operating Supply: 24 VDC
• Operating Temperature: -10°C ~ +60°C
• Storage Temperature: -40°C ~ +85°C
• Form Factor: Standard Eurocard rack plug-in printed circuit board

• Protection Class: IP20 when installed inside control cabinet

•


Compatibility & Application

• Compatible with ALSTOM legacy steam turbine governing control racks equipped with TRENO bus architecture
• Widely deployed in thermal power plants, combined-cycle power stations and industrial captive power plants
• Applied for remote data transmission of turbine operating parameters, fault alarm upload and remote command interaction
