Product Overview

• Part No: 730475-D, ELEMENTS-F2
• Brand: ALSTOM

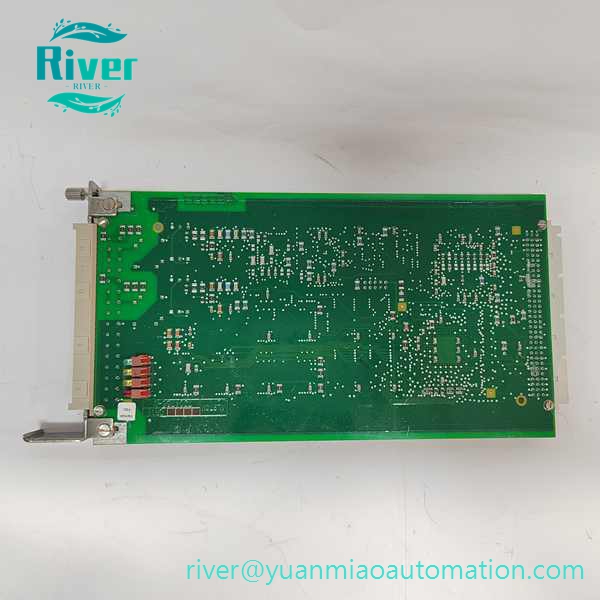

• Category: Turbine Main Processor Control Module730475-D ELEMENTS-F2 is a Eurocard plug-in 32-bit microprocessor main controller for ALSTOM legacy steam turbine governing systems. It serves as the central processing unit for single extraction, extraction/intake and condensing steam turbines. The module executes turbine speed closed-loop regulation, extraction pressure control, load setpoint management, protection interlock logic and fault monitoring. It supports on-site field programming to adapt to multiple turbine configurations, and communicates with I/O modules, HMI and upper monitoring systems via internal rack bus. Equipped with built-in self-diagnosis, surge filtering and EMC protection circuits, it ensures stable continuous operation under severe electromagnetic interference inside power plant control cubicles. It is a discontinued original critical spare used for maintenance and retrofit of thermal power plant turbine control equipment.

•


Core Features

• 32-bit high-speed microprocessor for turbine governing closed-loop control algorithms
• Supports extraction turbine, back-pressure turbine and condensing turbine control modes
• Field programmable parameter configuration to fit various unit operating requirements
• Integrated logic processing for speed control, load regulation and protection interlocks
• Multi-channel internal bus interface for data exchange with rack I/O modules
• Front panel diagnostic LEDs for module status and fault troubleshooting
• Standard Eurocard draw-out structure supporting rapid on-site replacement
• Reinforced multilayer PCB with gold-plated edge connectors for anti-vibration performance

• Passed EMC, vibration and wide-range thermal cycling reliability qualification

•


Technical Specifications

• Operating Supply: 24 VDC
• Operating Temperature: -10°C ~ +60°C
• Storage Temperature: -40°C ~ +85°C
• Form Factor: Standard Eurocard rack plug-in printed circuit board

• Protection Class: IP20 when installed inside control cabinet

•


Compatibility & Application

• Compatible with ALSTOM legacy steam turbine governing rack architecture
• Widely deployed in thermal power plants, industrial captive power stations
• Applied as main controller for extraction steam turbines, back-pressure turbines and condensing turbine governing systems
