Product Overview

• Part No: MLU VER.A01
• Brand: ALSTOM

• Category: MLU Main Logic Unit Processor Module

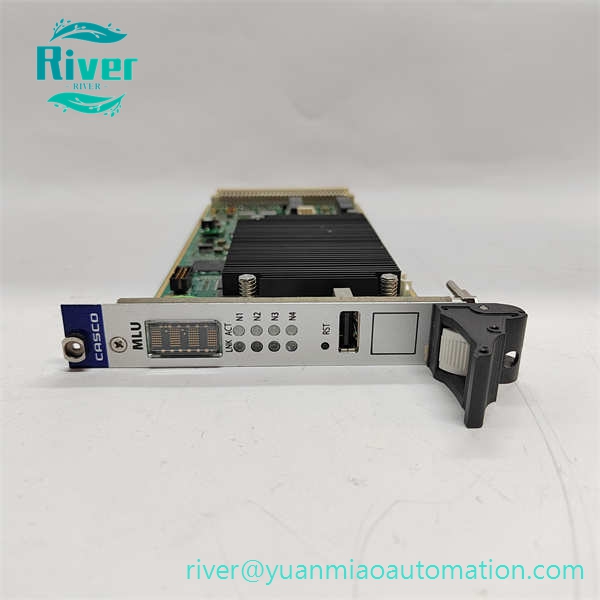

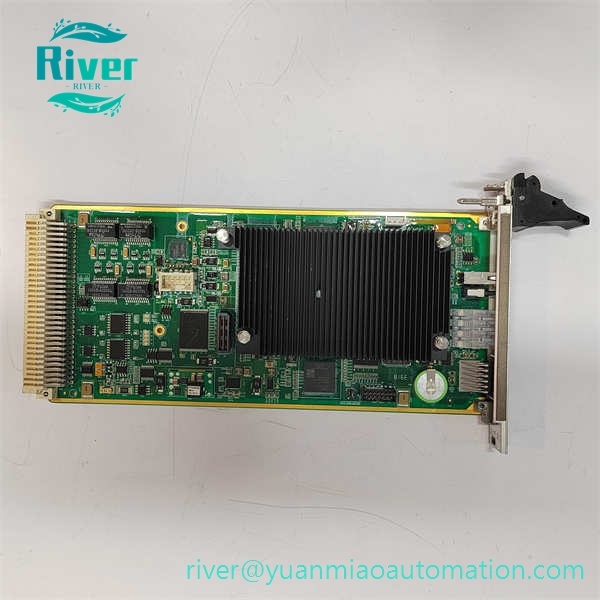

  MLU VER.A01 is a high-performance Eurocard plug-in main logic processing unit developed by ALSTOM. VER.A01 represents the official hardware revision version. As the core logic controller inside the control rack, it undertakes real-time logic operation, signal processing, system scheduling and data communication tasks. The module exchanges data with I/O boards, communication modules and upper monitoring systems via backplane bus, executes user control logic, fault monitoring and interlock protection algorithms. Equipped with on-board high-speed processor, front panel LED diagnostic indicators, Ethernet interface and built-in ESD & surge suppression circuits, it maintains stable continuous operation under strong electromagnetic interference. It is an important maintenance spare part for power generation automation and large-scale industrial control racks.

•


Core Features

• High-speed embedded processor for complex real-time logic calculation and closed-loop control
• On-board self-diagnosis function with front LED indicators for module running status and fault alarm
• Integrated Ethernet communication interface for data interaction with HMI and supervisory systems
• Standard Eurocard draw-out structure supporting hot swap and rapid on-site replacement
• Reinforced multilayer PCB layout with gold-plated edge connectors for anti-vibration performance
• Built-in transient overvoltage filtering and channel isolation to adapt harsh industrial environments

• Passed EMC, vibration and wide-range thermal cycling reliability verification

•


Technical Specifications

• Operating Supply: 24 VDC
• Operating Temperature: -10°C ~ +60°C
• Storage Temperature: -40°C ~ +85°C
• Form Factor: Standard Eurocard rack plug-in printed circuit board

• Protection Class: IP20 when installed inside control cabinet

•


Compatibility & Application

• Compatible with ALSTOM legacy industrial control rack architecture
• Widely deployed in thermal power plants, combined-cycle power stations and heavy industry automation projects
• Applied as main logic controller for turbine auxiliary control, process interlock and automation sequential control systems
