N897093511D N897093051D DIAGNOSTICA N897093400H ALSTOM DIAGNOSTICA Rack Diagnostic Monitoring Module

Short Description:

ALSTOM DIAGNOSTICA series N897093511D, N897093051D, N897093400H Eurocard diagnos

Send email to us

Product Detail

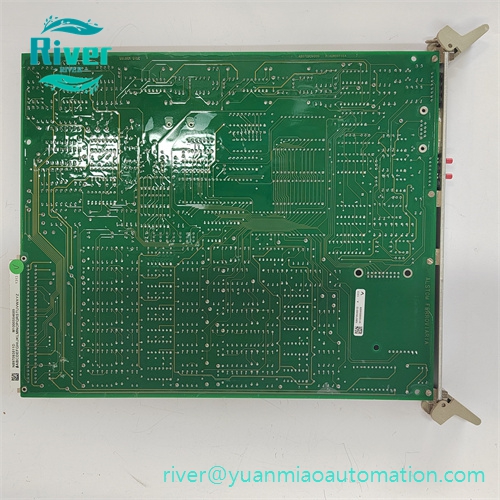

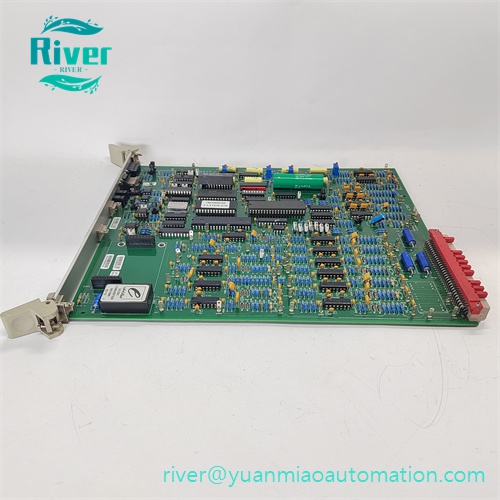

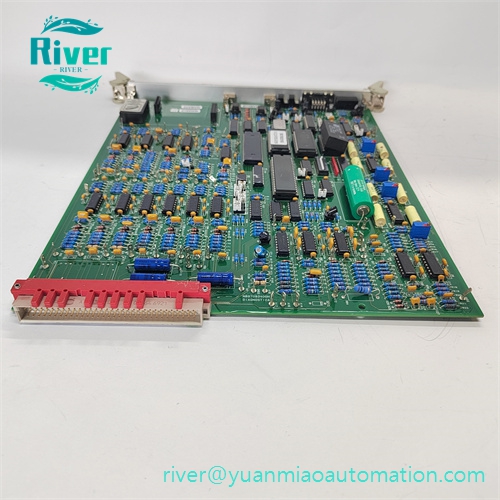

ALSTOM DIAGNOSTICA series N897093511D, N897093051D, N897093400H Eurocard diagnostic board, spare hardware for legacy steam turbine governing racks with TRENO bus architecture.

Product Overview

Part No: N897093511D, N897093051D, DIAGNOSTICA, N897093400H
Brand: ALSTOM
Category: DIAGNOSTICA Rack System Diagnostic & Monitoring Module

N897093511D, N897093051D and N897093400H belong to ALSTOM DIAGNOSTICA dedicated rack diagnostic module family for TRENO bus turbine control systems. Different suffix letters represent successive hardware revisions and component configurations, functionally compatible within matching control rack setups.

This Eurocard plug-in module continuously monitors the operating status of all internal rack modules, power supply quality, TRENO bus communication health and signal integrity. It collects fault codes, abnormal status and alarm events from ECPU, I/O boards and communication modules, implements fault recording, event logging and local status indication, and transmits diagnostic information to main controller and upper HMI for maintenance troubleshooting. Built-in filtering, surge suppression and ESD protection guarantee stable monitoring under severe electromagnetic interference in power plant turbine governing cubicles. It is a discontinued essential maintenance spare for thermal power and combined-cycle power plant steam turbine control system overhaul.

Core Features

Real-time comprehensive status monitoring for all modules inside the control rack
TRENO bus communication diagnosis, fault event capture and historical alarm logging
Front panel multi-channel LED indicators for quick on-site fault localization
Standard Eurocard draw-out construction supporting rapid field replacement
Reinforced multilayer PCB with gold-plated edge connectors for anti-vibration performance
Integrated transient overvoltage suppression and ESD protection circuits
Passed EMC, vibration and wide-range thermal cycling reliability qualification

Technical Specifications

Operating Supply: 24 VDC
Operating Temperature: -10°C ~ +60°C
Storage Temperature: -40°C ~ +85°C
Form Factor: Standard Eurocard rack plug-in printed circuit board
Protection Class: IP20 when installed inside control cabinet

Compatibility & Application

Compatible with ALSTOM legacy steam turbine governing racks adopting TRENO internal bus
Widely deployed in thermal power plants, combined-cycle power stations and captive power facilities
Applied for rack hardware health monitoring, communication fault diagnosis, turbine governing system troubleshooting and predictive maintenance
