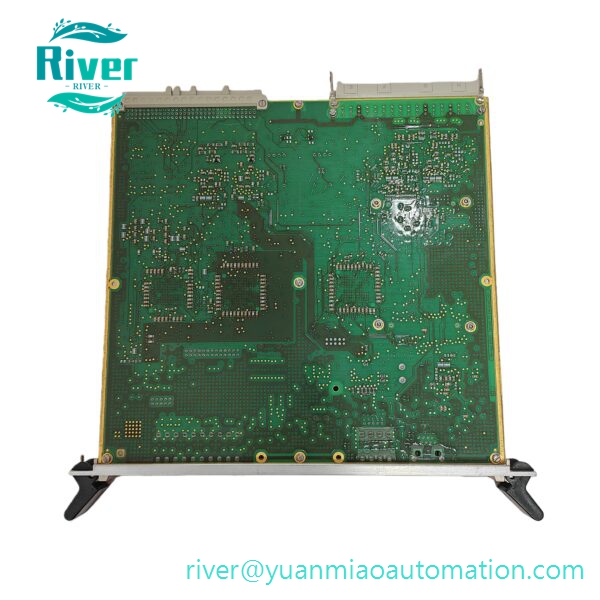

Product Overview

• Part No: CMP1838, TRVCO62345000, CP00005202
• Brand: ALSTOM

• Category: CMP1838 Precision Control Processor ModuleCMP1838 TRVCO62345000 CP00005202 is ALSTOM Contronic platform Eurocard plug-in dedicated processor board. The three codes belong to the same hardware assembly:CMP1838 = module type；TRVCO62345000 = drawing part number；CP00005202 = internal factory serial reference number.This module undertakes real-time signal processing, closed-loop regulation algorithm operation and logic calculation in turbine control racks. It collects speed, pressure, valve position analogue signals and digital interlock signals via backplane bus, executes turbine speed control, load adjustment, extraction pressure regulation and protection interlock logic, and outputs drive commands to valve actuator modules. Equipped with on-board self-diagnosis, signal filtering, galvanic isolation and surge protection circuits, it ensures continuous stable operation under strong electromagnetic interference in power plant turbine governing cabinets. It is discontinued original critical maintenance spare widely used for overhaul of thermal power and combined-cycle steam turbine control systems.

•


Core Features

• High-speed embedded processor for turbine governing closed-loop control algorithms
• Multi-channel analogue & digital signal data processing and real-time logic operation
• Supports speed regulation, load control, extraction pressure control and trip interlock functions
• On-board self-diagnosis, fault recording and front LED status indication
• Standard Eurocard draw-out rack design supporting rapid on-site replacement
• Reinforced multilayer PCB with gold-plated edge connectors for anti-vibration performance
• Integrated ESD, transient overvoltage suppression and EMI noise filtering

• Passed EMC, vibration and wide-range thermal cycling reliability qualification

•


Technical Specifications

• Operating Supply: 24 VDC backplane power
• Operating Temperature: -10°C ~ +60°C
• Storage Temperature: -40°C ~ +85°C
• Form Factor: Standard Eurocard rack plug-in printed circuit board

• Protection Class: IP20 when installed inside control cabinet

•


Compatibility & Application

• Compatible with ALSTOM Contronic / MicroREC legacy turbine control rack architecture
• Widely deployed in thermal power plants, combined-cycle power stations and captive power facilities
• Applied as core processing unit for condensing turbine, extraction turbine and back-pressure turbine governing systems
