Original Eaton CS‑TX3‑3.81X2.54‑64TW signal interface module for industrial control system.

Product Overview

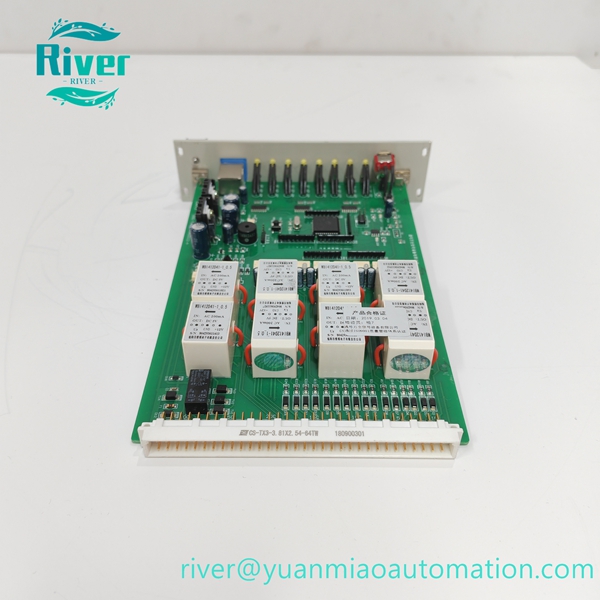

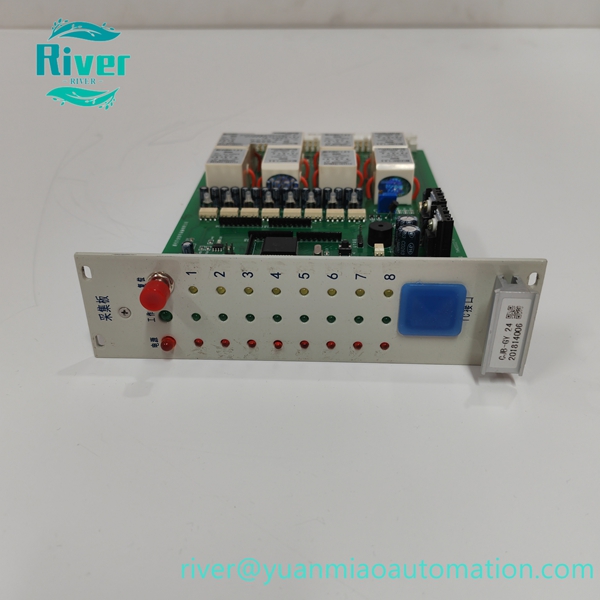

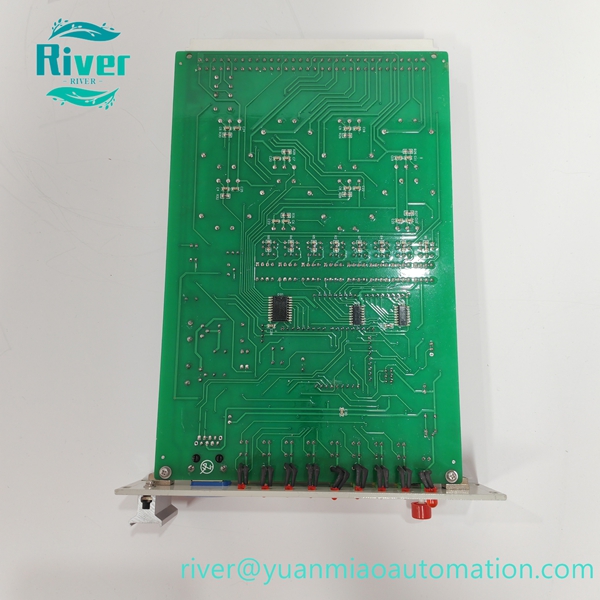

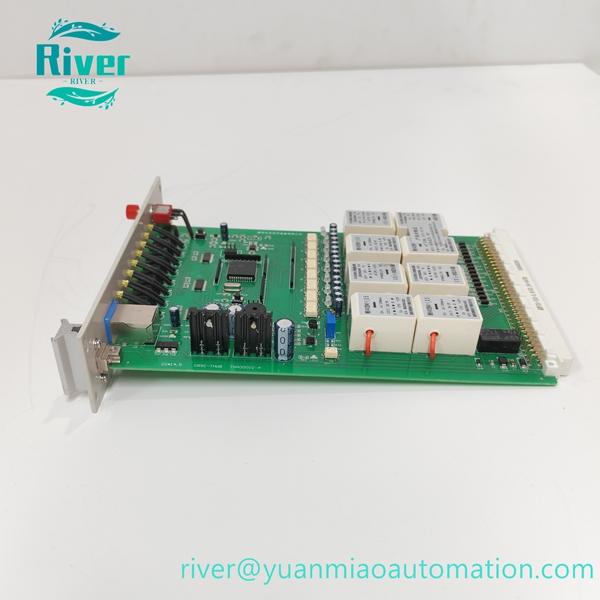

Eaton CS‑TX3‑3.81X2.54‑64TW is a high‑density 64‑pin signal interface module, adopts dual‑pitch 3.81mm×2.54mm structure. It realizes reliable signal routing and transmission between control rack and field equipment, widely used in power plant and industrial automation control cabinets as replacement spare part.

Key Features

• 64‑channel high‑density signal connection design
• Dual pitch 3.81mm horizontal and 2.54mm vertical spacing
• Excellent anti‑interference performance for industrial cabinet environment
• Stable signal transmission with low crosstalk
• Compact structure, slot‑in rack installation

• Flame‑retardant housing for enhanced safety performance

•


Technical Specifications

• Part number: CS‑TX3‑3.81X2.54‑64TW
• Brand: Eaton
• Pin count: 64 pins
• Pitch: 3.81mm × 2.54mm
• Rated voltage: Up to 300V
• Operating temperature: ‑40℃ ~ +85℃

• Mounting: Rack slot‑in installation

•


Compatibility

Compatible with multiple industrial control racks, signal acquisition boards and turbine control related system modules.
