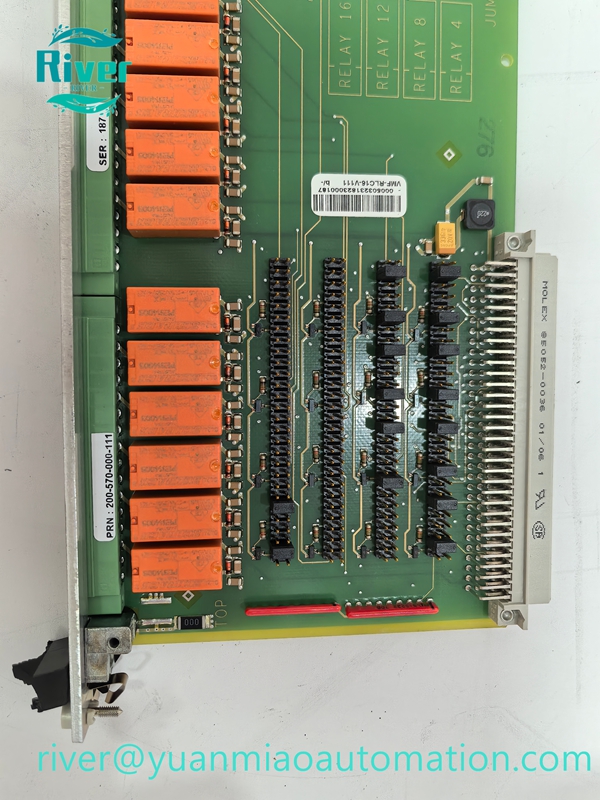

Original VIBRO‑METER RLC16‑V111 200‑570‑101‑016 rear‑mount 16‑channel relay card for VM600 machinery monitoring system, alarm interlock expansion spare part.

Product Overview

VIBRO‑METER RLC16‑V111 200‑570‑101‑015 is rear‑slot installed 16‑channel relay expansion card for VM600 MPS/CMS system. It provides extra relay outputs for alarm and trip signals when IOC4T onboard relays are insufficient, controlled by rack backplane, outputs contact signals for external interlock, alarm indication and safety trip, widely used for turbine, compressor monitoring system in power and petrochemical plants.

Key Features

• 16 independent SPDT change‑over relay channels for alarm and trip output
• Jumper configurable for normally energized or normally de‑energized relay mode
• Rear slot installation inside VM600 rack, connects via VME backplane
• Screw terminal block for safe field wiring of external control circuits
• Software controlled relay actuation from CPUM and protection cards
• Industrial grade hardware, anti‑interference for harsh plant environment

• Hot‑swap capable for on‑site maintenance replacement

•


Technical Specifications

• Brand: VIBRO‑METER (Meggitt)
• Model: RLC16‑V111
• Part Number: 200‑570‑101‑015
• Series: VM600
• Relay Quantity: 16‑channel SPDT
• Relay Rating: 250V AC / 5A
• Installation: Rear slot of 6U ABE040 rack
• Operating Temperature: ‑20℃ ~ +70℃
• Application: Machinery protection alarm & trip relay expansion

• Certification: CE certified

•


Compatibility

Fits ABE040 VM600 system rack, cooperates with CPUM, MPC4, CMC16 cards, used for turbomachinery monitoring system overhaul and spare‑parts replacement.
