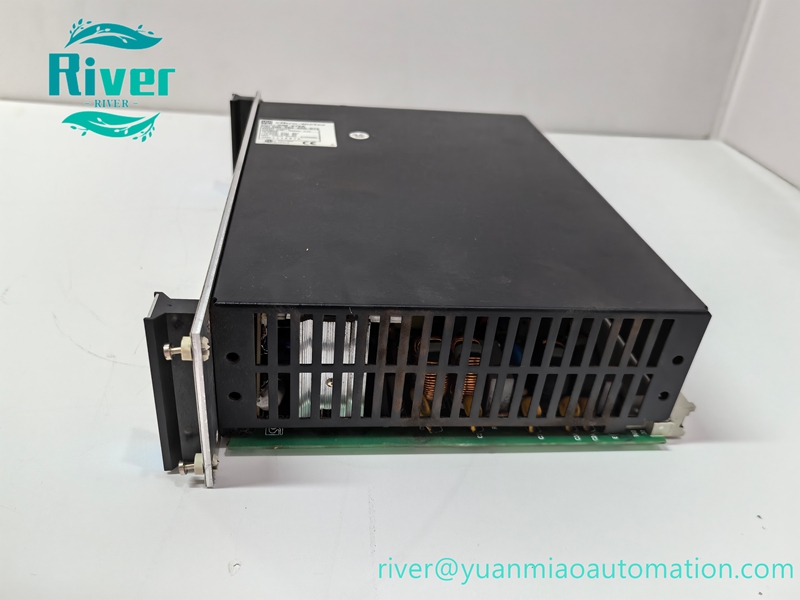

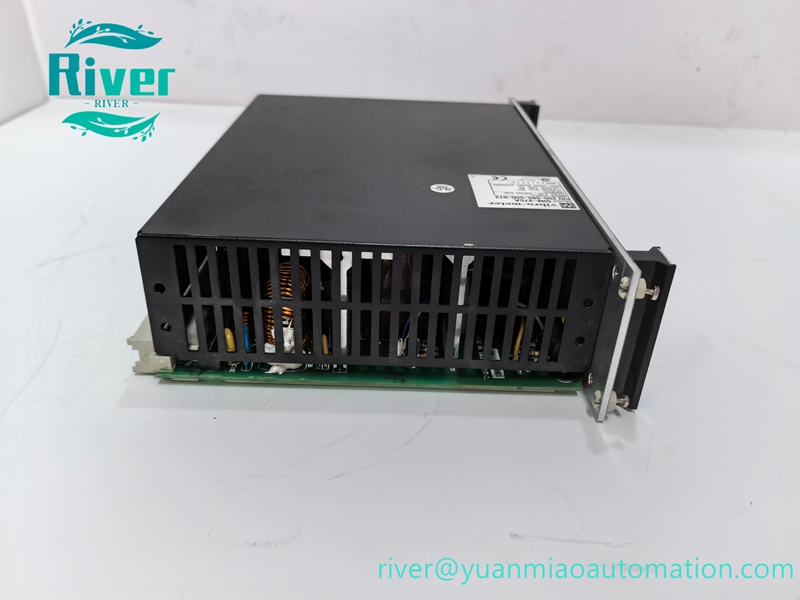

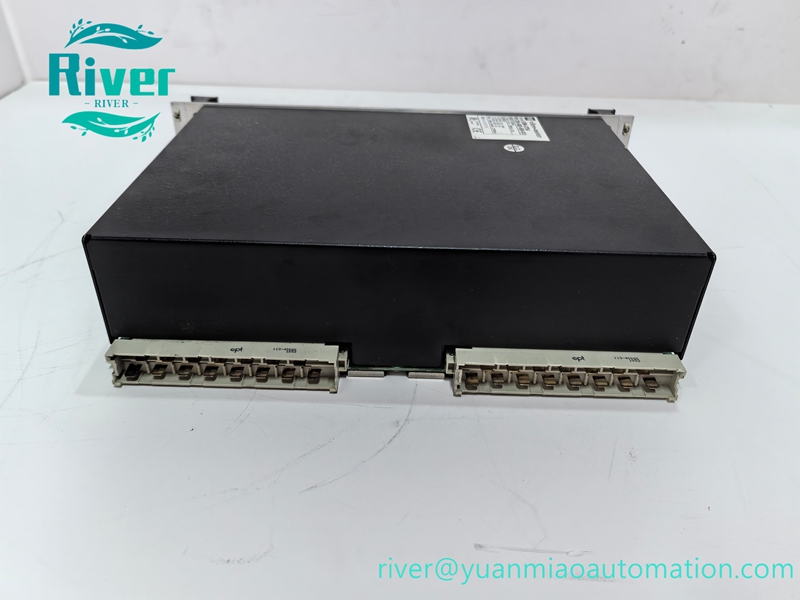

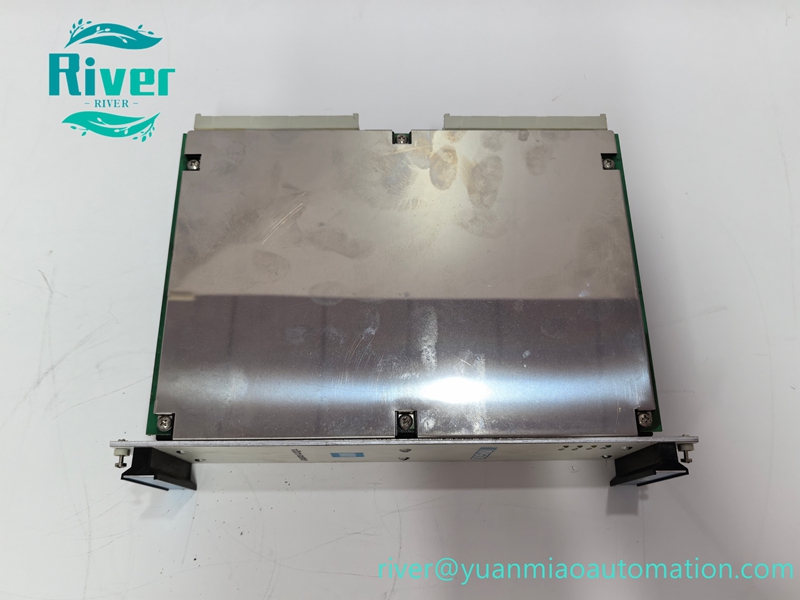

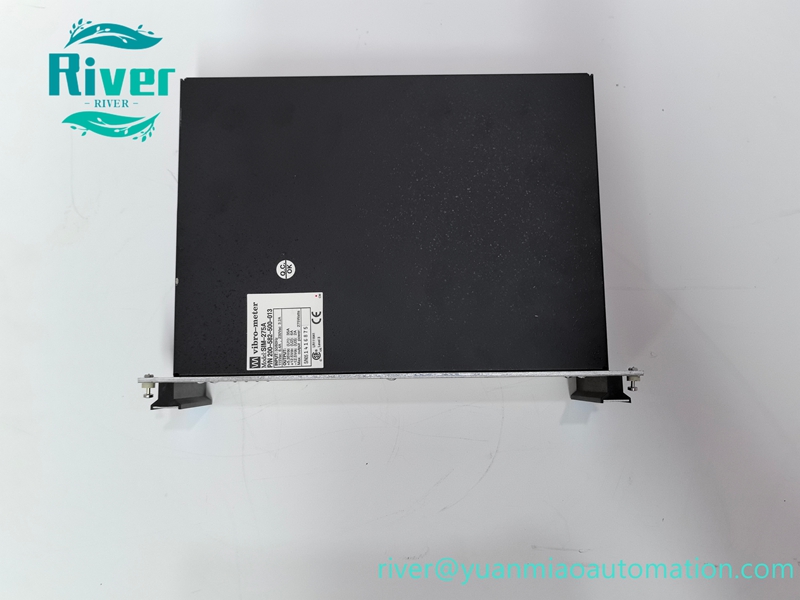

Original VIBRO‑METER SIM‑275A RPS6U 200‑582‑500‑013 rack power supply for VM600 machinery protection system, industrial monitoring cabinet power replacement spare part.

Product Overview

VIBRO‑METER SIM‑275A also known as RPS6U, part number 200‑582‑500‑013, is dedicated rack power supply module for VM600 MPS/CMS machinery monitoring system. It converts AC input into multi‑channel stable DC power for all internal cards inside ABE040 rack including CPUM, MPC4, CMC16 and I/O modules. It supports redundant parallel operation to improve system reliability, widely deployed for turbine, compressor and generator monitoring system in power plant and petrochemical industry.

Key Features

• 300W high‑power rack power supply, auto‑ranging AC input 115/230V
• Multi‑output DC rails (+5V, +15V,‑15V, +24V) for VM600 backplane
• Supports dual power supply redundant hot‑standby configuration
• Built‑in over‑voltage, over‑current, short‑circuit and over‑temperature protection
• Front‑panel LED indicators for power status and fault diagnosis
• 6U front‑slot installation for ABE040 VM600 rack, direct backplane connection
• EMC surge filtering, resists industrial grid interference

• Hot‑swap capable for on‑site maintenance without rack shutdown

•


Technical Specifications

• Brand: VIBRO‑METER (Meggitt)
• Model: SIM‑275A / RPS6U
• Part Number: 200‑582‑500‑013
• Series: VM600
• Input: 115‑230V AC auto‑ranging
• Max Power: 300W
• Output: +5V DC, +15V DC,‑15V DC, +24V DC
• Mounting: Front slot of 6U ABE040 rack
• Operating Temperature: ‑20℃ ~ +65℃
• Application: VM600 system rack power feeding

• Certification: CE certified

•


Compatibility

Designed for ABE040 VM600 system rack, supplies power for CPUM, MPC4, CMC16, IOC4T, IOC16T, IOCN, RLC16 modules, used for turbomachinery protection system overhaul and spare‑parts replacement.
