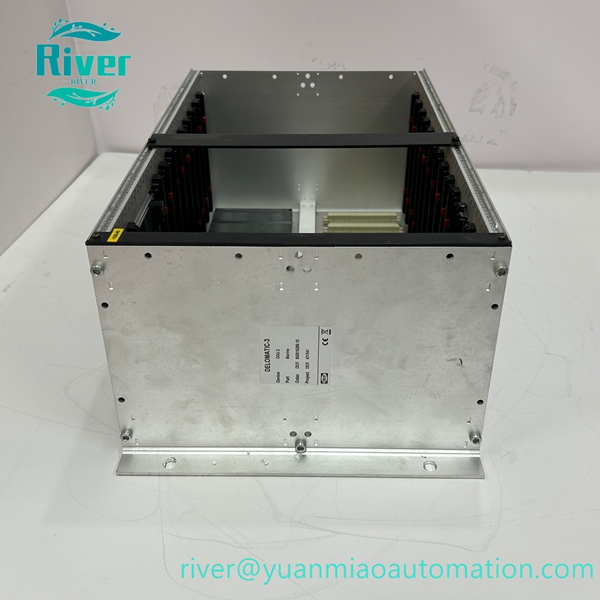

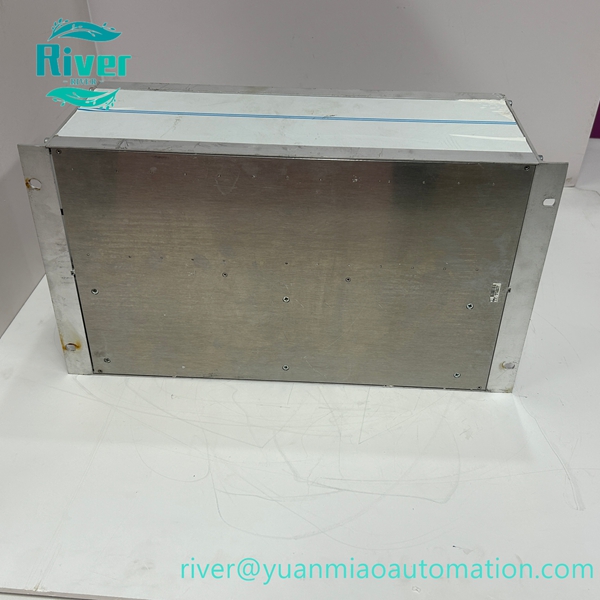

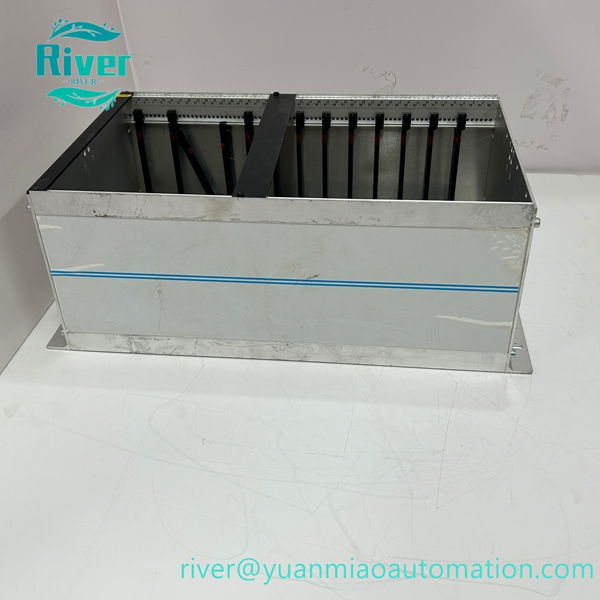

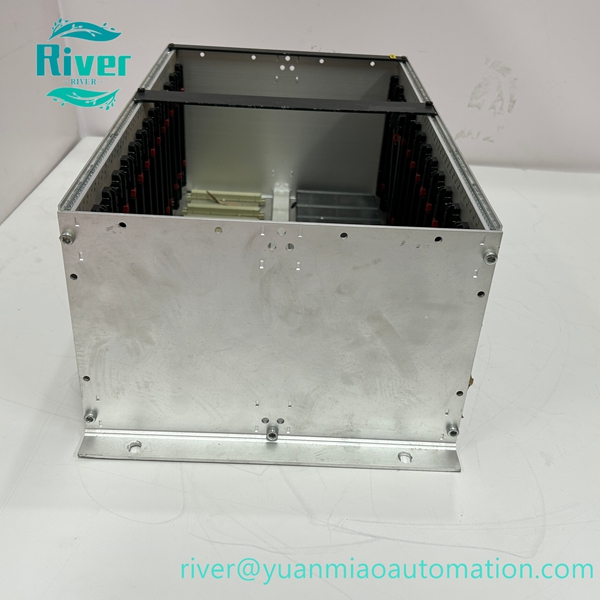

DEIF DELOMATIC-3 DGU2 is a multifunctional generator control unit for genset synchronisation, load sharing and power management in marine and land power systems.

Product Overview:

DEIF DELOMATIC-3 DGU2 is the core generator control unit of DELOMATIC-3 power management system. It controls single or multiple generator sets, performing automatic synchronisation, load distribution, parameter monitoring and full electrical protection for marine and stationary power plants.

Key Features:

• Integrated automatic synchronisation and load sharing for parallel generators
• Comprehensive generator protection: over/under voltage, over/under frequency, reverse power, overcurrent
• Supports up to 8 generators parallel operation
• ARCnet communication interface for system networking
• User configurable setpoints, timers and logic functions

• Suitable for 19-inch rack mounting, modular plug-in design

•


Technical Specifications:

• Model: DELOMATIC-3 DGU2
• Brand: DEIF
• Type: Generator Control Unit (GCU)
• Series: DELOMATIC-3 Power Management System
• Mounting: 19” dual height rack
• Communication: ARCnet
• Operating Temperature: -10℃ ~ +60℃

• Enclosure: IP20 for cabinet installation

•


Compatibility & Application:

Works with DELOMATIC-3 CP control panels. Widely used for marine vessel power systems, onshore power stations, backup power plants and industrial power management.
